- Ultra-compact design (1 RU)�STM-1 trunks, built-in E1/T1 and Ethernet client ports, and integrated non-blocking cross-connect
- Highly flexible configurations�Terminal mux and ADM, linear
MSP 1+1 protection, point-to-point, linear ADM, ring ADM, and SNCP/I
and SNCP/N
- Next-generation SDH features�GFP encapsulation, virtual concatenation (VCAT), LO/HO, LCAS
- Layer 2 packet intelligence�Ethernet MAC with flow control, VLAN, rate limiting, Q-in-Q, and QoS
The

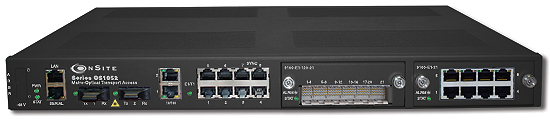

Patton OnSite Series Model OS1052 is an ultra-compact next-generation
flex access node. The OS1052 is the platform of choice for economical
deployment of access points with low initial count of E1 and Ethernet
ports, but with flexibility for future capacity expansion and simple
migration toward converged IP service networks. The OS1052 supports
3G/4G mobile network backhaul, secure and scalable carrier Ethernet
transport, multi-service aggregation, quad-play connectivity (voice,
data, video and mobility), and technology mediation among TDM, ATM, and
Ethernet.
The advanced modular design of the OnSite OS1052 provides unequaled
flexibility in its class in terms of service offerings, capacity and
functional upgrades.
The OS1052 incorporates next-generation SDH features such as
virtual concatenation (VCAT), link capacity adjustment scheme (LCAS)
and generic framing procedure (GFP) for efficient packet data
transport. The platform also incorporates Layer 2 features such as VLAN
tagging, rate limiting and statistical multiplexing with multi-level
QoS control.
The base OS1052 system is configured with 2 STM-1, 8 E1/T1 and 2 Ethernet 10/100Base-TX.
Two expansion module slots are included for increasing system
capacity beyond the initial base configuration. Additional ports and
features only require simple insertion of one of the many available
types of TDM and packet data modules.
In only one RU, the OS1052 supports expansion up to 50 E1 ports and 18 Ethernet 10/100 ports
Example combinations of service and port capacity expansions
The
advanced modular design of the Patton OnSite OS1052 provides unequaled
flexibility in its class in terms of service offerings, capacity and
functional upgrades.
The base OS1052 system is configured with:
- 2 STM-1
- 8 E1/T1
- 2 Ethernet
- 10/100Base-TX
Two
expansion module slots allow increasing system capacity beyond the
initial base configuration. Additional ports and features only require
simple insertion of one of the many available types of TDM and packet
data modules.
In only one RU, the OS1052 supports expansion up to:
- 50 E1 ports
- 18 Ethernet 10/100 ports
The
OS1052 incorporates next-generation SDH features such as virtual
concatenation (VCAT), link capacity adjustment scheme (LCAS) and
generic framing procedure (GFP) for efficient packet data transport.
The platform also incorporates Layer 2 features such as VLAN tagging,
rate limiting and statistical multiplexing with multi-level QoS
control. The OS1052 is easily configured and managed through a simple
Web-based GUI interface or the scalable Patton OnSight NMS.
| Trunk Interfaces |
STM-1: G.707, G.783 � Optics: G.957 S-1.1, L-1.1 and L-1.2 options |
| Client Interfaces |
E1: G.703, 75-ohm and 120-ohm options � T1: G.703, 100-ohm � Ethernet 10/100Base-TX: 802.3u |
| Expansion Modules |
SDH: STM-1 optical (2 ports) � STM-1 electrical (2 ports)
PDH: E1 (21 ports) � E3/DS3 (3 ports)
Packet Data: 10/100Base-TX (8 ports) |
| Configuration & Port Capacity for 2 Expansion Slots |
STM-1: Base: 2 � Max: 6
E1: Base: 8 � Max: 50
E3/DS3: Base: � � Max: 6
10/100Base-TX: Base: 2 � Max: 18 |
| Protection |
Linear MSP 1+1 � SNCP/I and SNCP/N |
| Bandwidth Connectivity and Provisioning |
Connectivity:
VC-12, VC-3 levels � One-way, two-way, drop-and-continue and multicast
connections � VCAT: VC-12-Xv and VC-3-Xv � LCAS: G.7042 � Packet
encapsulation: GFP-F (G.7041) |
| Timing & Synchronization |
Internal:
Stratum 3 clock � Line timing: STM-1 and E1/T1 � External timing: Dual
Sync In/Out ports at 2 or 1.5 Mbps/MHz � SSM support: G.781 |
| System Access |
Serial
RS-232 and Ethernet LAN management ports � IP over DCCr and DCCm
options � IP over E1 signal mapped into selected VC-12 channel � DCC
transparency (any subset of DCC rows) � Telnet |
| Operations |
Local
and remote software download and upgrade (FTP/TFTP) � Loopbacks:
facility and terminal � ALS (automatic laser shutdown): G.958 � Alarm
Contacts (optional) � Orderwire: 2-wire interface using E1 or E2 byte
(optional) |
| Management |
Web-based GUI management interface � XML � SNMP v1/v2 |
| Packet Intelligence |
Ethernet
MAC: 802.3 � VLAN: 802.1Q and Q-in-Q � Service provider VLAN (SP-VLAN)
using S-Tag: 802.1ad � Tagging operations: C-Tag and S-Tag add/strip �
Flow Control: 802.3x � Rate Limiting: Sustained and peak rates with 64
kbit/s granularity for ports and VLANs � QoS: 4 levels with strict
priority, WFQ and WRED support |
| Dimensions |
1.75H x 17.25W x 11.54D in.
(44.45H x 438.2W x 293D mm)
1RU
|
| Weight |
11 lbs (5 kg) |
| Cooling |
Natural convection cooling (no fans) |
| Mounting |
19-inch EIA/TIA or ETSI 300 mm racks, or desktop and wall-mounting options |
| Power |
AC input: 100 to 245 V at 50 to 60 Hz
DC input: -36 to -72 V (-48V nominal), dual inputs
Consumption: 60 W maximum
|
| Environment |
Temperature: 0 to +50°C (+32 to +122°F)
Humidity: 5 to 95%, non-condensing |
| EMC |
EN 55022 Class A, FCC part 15 Class A |
| Safety |
EN 60950, UL 60950 |
| CE Mark |
Yes |
|
|
